Overall W x L:
101" x 246"
-
Deck W x L:
82" x 192"
-
Gate W x L:
Split 78" x 49"
-
Empty Weight:
2,200 lbs.
-
Payload Capacity:
7,790 lbs.
-
Coupler:
2-5/16" A-Frame (256T)
-
Tongue Type:
A-Frame 5" Steel Channel
-
Length: Frame to Coupler:
49"
-
Level Tongue Height:
16-1/4"
-
Safety Chains:
GVWR 14,000 Lbs., 30" x 5/16" w/ Hooks
-
Jack:
2,000 Lbs. Top-Wind (741)
-
Breakaway System:
Tongue Mounted (701T)
-
Flooring Material:
2x Treated Wood
-
Deck Height from Ground:
19-3/4"
-
Frame:
2-1/2" x 2-1/2" x 1/4" Steel Angle
-
Uprights:
2-1/2" x 2-1/2" x 1/4" Steel Angle
-
Upright Height:
14"
-
Sides:
Open
-
Top Rail:
2-1/2" x 2-1/2" x 1/4" Steel Angle
-
Cargo Hold:
6 Stake Pockets
-
Fenders:
9" x 66" Tandem Diamond Plate w/ Back
-
Tires:
15" ST225/75D15 (225X15-BLACK)
-
Wheels:
Black Mod
-
Axle Type:
Two 5,000 Lbs. E-Z Lube Brake Axles, 93"/80" (5K9380EZB)
-
GVWR:
9,990 Lbs.
-
Leaf Springs:
5-Leaf Eye-to-Eye (353T)
-

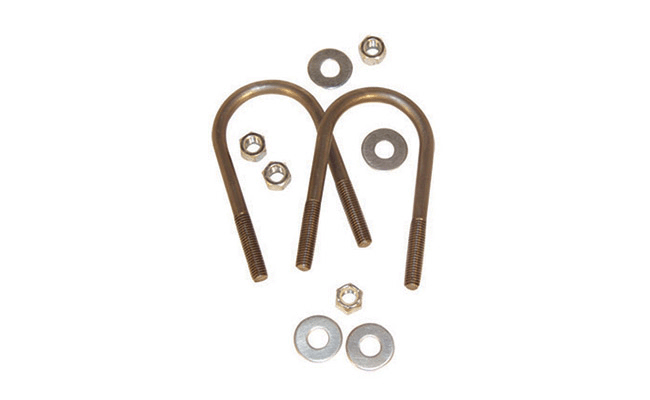

U-Bolt:
9/16" Round (653)
-
Tie Plate:
Large 3-3/4" x 5-5/8" (650T)
-
Hub Kit:
6 Lugs on 5-1/2" Pattern, 12" Brake Drum
-
Dust Cap:
2.43" E-Z Lube
-
Spindle:
1-3/4", Max 2,500 Lbs. Capacity
-
Bearing:
1-3/4" Bearing Kit
-
Grease Seal:
2-1/4"
-
Gate Style:
Fixed Split Ramp Gate
-
Rear Latch:
Heavy-Duty Spring Latch and Bent Pin
-
Plug Type:
7-Way Round
-
Tail Lights:
LED 80"+W Roadside, LED 80"+W Curbside
-
License Plate Illumination:
Incorporated with Road Side Tail Light
-
Marker Lights:
LED Amber Penny Light (881T)
-
Clearance Lights:
LED Amber Penny Light (881T)
-
ID Lights:
LED Red 3-Light ID Bar (438T)
