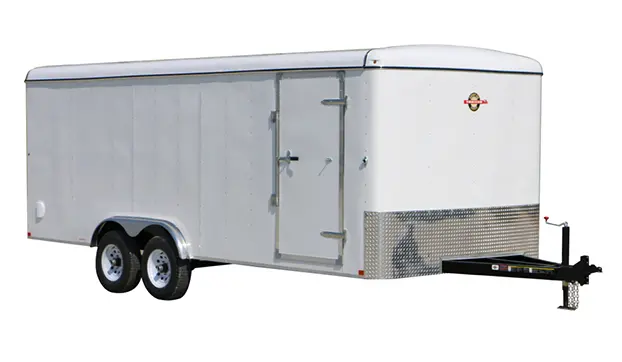

8.5' x 20' 10K Radius Front Rounded Roof Tandem Axle

Model Number:

8-5x20cgr

Arrow/ white
View Specs

Model Information:

  • Overall W x L: 102" x 292"
  • Empty Weight: 3,000 lbs.
  • Payload Capacity: 6,990 lbs.
  • Floor: 3/4" Plywood
  • GVWR: 9,990 lbs.
  • Axle 1: 5,000 lbs. E-Z Lube Drop Axle w/ Brake
  • Axle 2: 5,000 lbs. E-Z Lube Drop Axle w/ Brake
  • Breakaway Kit Included: Yes
  • Leaf Springs: 5
  • Frame: 2" x 6" Tube
  • Frame On Center: 16"
  • Wall Frame On Center: 16"
  • Interior Walls: 3/8" Plywood
  • Roof Frame On Center: 24"
  • Tongue: 2" x 6" Tube A-Frame Triple Through
  • Coupler: 2-5/16" A-Frame
  • Jack: 2,000 lb. Rated Top Wind
  • Tires: 15" 225X15
  • Wheels: White Mod
  • Fenders: Aluminum, Smooth
  • Fender Wells, Inner: 72"
  • Lights: LED
  • Overall Height: 106"
  • Interior Height: 78"
  • Interior Width: 96"/82"
  • Interior Length: 238"
  • Front Horizontal Stone Guard: 24" H Diamond Plate with Trim
  • Rear Gate Style: Ramp Door with Ramp Extension
  • Curbside Entry Door W x H: 36" W, Set Back 30"
